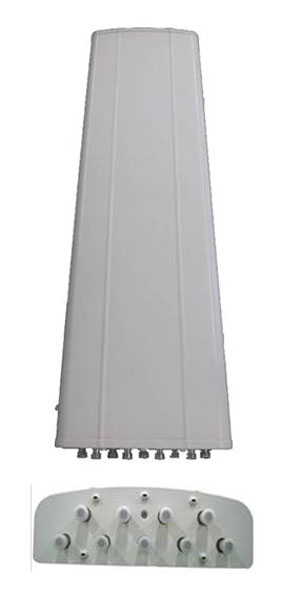

1.Frequency range: 1880-1920MHz 2010-2025MHz
2.Electrical down-tilt range: 0/3/6/9°
3.Electrical accuracy: ±1
4.Coupling factor between gauged terminal and all radiate terminals: -26±2dB
5.Maximum altitude deviation between gauged terminal and all radiate terminals: ≤0.7dB
6.Maximum phase deviation between gauged terminal and all radiate terminals: ≤5°
7.VSWR between gauged terminal and all radiate terminals: ≤1.5
8.The 0 isolation between the homo-polarized radiation ports: ≥20dB
9.The 3° isolation between the homo-polarized radiation ports: ≥25dB
10.The 6° isolation between the homo-polarized radiation ports: ≥28dB
11.The 9° isolation between the homo-polarized radiation ports: ≥28dB
12.The 0° isolation between the hetero-polarized radiation ports: ≥25dB
13.The 3° isolation between the hetero-polarized radiation ports: ≥28dB
14.The 6° isolation between the hetero-polarized radiation ports: ≥30dB
15.The 9° isolation between the hetero-polarized radiation ports: ≥30dB
16.Unit beam horizontal half power beam width:
17.Unit beam gain: ≥14dBi
18.Unit beam ±60° margin power decrease: /
19.Unit beam vertical half power beam width: /
20.Unit beam cross polarization ratio (axis direction): ≥18dB
21.Unit beam cross polarization ratio (±60°): ≥18dB
22.Unit beam front-to-back ratio: ≥23dB
23.Unit beam upper side-lobe restrain: /
24.Broadcast beam horizontal half power beam width: 65±5°
25.Broadcast beam gain: ≥14dB
26.Broadcast beam ±60° margin power decrease: 12±2dB
27.Broadcast beam vertical half power beam width: ≥6.5°
28.Broadcast beam cross polarization ratio (axis direction): ≥22dB
29.Broadcast beam cross polarization ratio (±20°): ≥20dB(1880-1920MHz)
30.Broadcast beam cross polarization ratio (±60°): ≥10dB
31.Broadcast beam front-to-back ratio: ≥28dB
32.Broadcast beam upper side-lobe restrain: ≤-16dB
33.Broadcast first Down Null-Fill : ≥-18dB
34.Business 0° pointing beam gain: ≥20dBi
35.Business 0° pointing beam horizontal half power beam width: ≤26°
36.Business 0° pointing beam horizontal side-lobe electrical level: ≤-12dB
37.Business ±60° pointing beam gain: ≥17.5dB
38.Business ±60° pointing beam horizontal half power beam width: ≤32°
39.Business ±60° pointing beam horizontal side-lobe electrical level: ≤-5dB
40.0° cross polarization ratio (axis direction): ≥22dB
41.0° front-to-back ratio: ≥28dB
Mechanical index:
1.Polarization method: ±45°
2.Input impedance: 50Ω
3.Power capacity: 50W (for unit terminal) 2W (for verify terminal)
4.Interface type: 9*N-Female
5.Product size (without package): 1400*300*95mm
6.Product size (with package): 1670*330*150mm
7.Product weight: 13.3kg
8.Whole weight: 20.5kg
9.Wind load area：0.45m2
10.Wind resistance: 60m/s
11.Antenna shield material: UPVC
12.Interface position: bottom
13.Mechanical down-tilt: 0~15°
14.Operating temperature: -55~+65℃
15.Pole mounted: ￠50~￠115mm
16.Ante-lightning protection: DC to ground
17.IP protection level: IP55
Product feature:
TD-SCMA antenna uses 3G criterion that is an evolution version of GSM. It uses TDD and TDMA/CDMA as multiple accesses that aim to establish high spectrum efficiency, economic and advanced mobile communication system.
